Film-faced plywood sits in a strange category of building materials. It is highly engineered, heavily abused on construction sites, frequently misrepresented by suppliers, and yet still one of the most cost-effective panel products in modern concrete construction.
Most people only see the black or brown surface and assume all film-faced plywood is basically the same. It is not. The difference between a premium birch-core phenolic panel and a low-density mixed hardwood board can mean the difference between 40 clean concrete pours and complete panel failure after three jobs.
In Australia, film-faced plywood is still commonly called formply, although technically not every film-faced panel qualifies as structural formply under Australian certification systems. That distinction matters more than many builders realise.
What Is Film-Faced Plywood?
Film-faced plywood is plywood coated with a resin-impregnated overlay film - usually phenolic or melamine - pressed onto the face under heat and pressure. The purpose is simple - to reduce water absorption, improve concrete release, increase abrasion resistance, extend reuse cycles, and create a smoother concrete finish.
Without the film, ordinary plywood absorbs water from wet concrete, swells, transfers grain marks into the pour, and breaks down rapidly. The film itself is not decorative. It is a performance layer.
A Short History of Film-Faced Plywood
Modern film-faced plywood evolved from early 20th century industrial plywood development in Northern Europe and North America, where manufacturers searched for reusable concrete forming systems during rapid infrastructure expansion.
The biggest shift came with the commercialisation of phenol-formaldehyde resins in the 1930s and 1940s. Waterproof phenolic adhesives allowed plywood to survive repeated wetting cycles, which made reusable concrete formwork economically viable.
By the post-war construction boom, coated plywood systems became standard across large-scale infrastructure projects. Scandinavian and Baltic birch manufacturers were especially influential because birch veneers provided exceptional density and dimensional stability.
The market changed again in the 1990s and 2000s when lower-cost Asian production scaled aggressively. Chinese, Vietnamese, Indonesian and Malaysian factories dramatically reduced pricing, but consistency became highly variable.
That is still the reality in 2026:
two sheets may look visually identical while performing completely differently on site.
How Film-Faced Plywood Is Manufactured
The manufacturing process determines nearly everything about panel performance.
1. Veneer Selection
Logs are rotary peeled into veneers.
Higher-end panels use birch, eucalyptus, and dense hardwoods. Mixed tropical hardwoods, poplar and inconsistent plantation species are popular among budget options.
Core density directly affects screw holding, flex resistance, impact resistance, panel's edge swelling, and, finally, reuse cycles. Low-density cores are one of the main causes of premature failure.
2. Drying and Grading
Veneers are dried to controlled moisture levels before assembly.
Poor factories rush this stage. Wet veneers trapped inside the panel may later create internal steam pressure, delamination, bubbling, and core separation (what is extremely common in low-cost imports).
3. Adhesive Application
Most quality film-faced plywood uses WBP (Weather and Boil Proof) phenolic resin adhesive.
The adhesive is critical because concrete formwork repeatedly exposes panels to alkaline moisture, thermal cycling, compression stress, or wet/dry movement
If glue spread rates are inconsistent, the panel may look fine initially but fail internally after several pours.
4. Hot Pressing
The veneers are assembled into plywood and compressed under high pressure and heat. This stage usually controls bond quality, thickness accuracy, internal voids, and overall panel flatness.
Cheap production often creates “core gaps” or internal voids. These weak zones become stress points under concrete pressure.
5. Film Lamination
The phenolic or melamine film is pressed onto the faces. This is where major quality differences appear. The film weight is usually measured in grams per square metre (g/m² or GSM). In some cases front and back sides of the same sheet have different film weight surfaces.
Typical ranges:
- 120 GSM = budget grade
- 160–180 GSM = commercial grade
- 220 GSM+ = premium heavy-duty formwork
Higher film weights generally improve abrasion resistance, moisture resistance, and surface durability. However, film thickness alone does not guarantee quality. Poor bonding ruins performance regardless of film weight.
Phenolic vs Melamine Film
This is one of the most misunderstood topics in the plywood industry.
| Property | Phenolic Film | Melamine Film |
|---|---|---|
| Moisture resistance | Excellent | Moderate |
| Reuse cycles | High | Lower |
| Chemical resistance | Strong | Moderate |
| Surface hardness | Hard | Smoother |
| Cost | Higher | Lower |
| Common use | Structural formwork | Decorative or low-cycle work |
Phenolic film is the industry standard for serious formwork applications because it handles moisture and concrete alkalinity far better.
Melamine-faced panels may produce a visually smoother finish initially, but they typically fail earlier under heavy site use.
Many cheap “film-faced” boards sold in Australia avoid clearly stating the actual film chemistry. That is usually not a good sign.
Common Surface Textures
First, not all film-faced plywood is smooth.
Smooth Finish
The standard option for wall formwork, precast, architectural concrete, and general shuttering. Produces cleaner concrete surfaces.

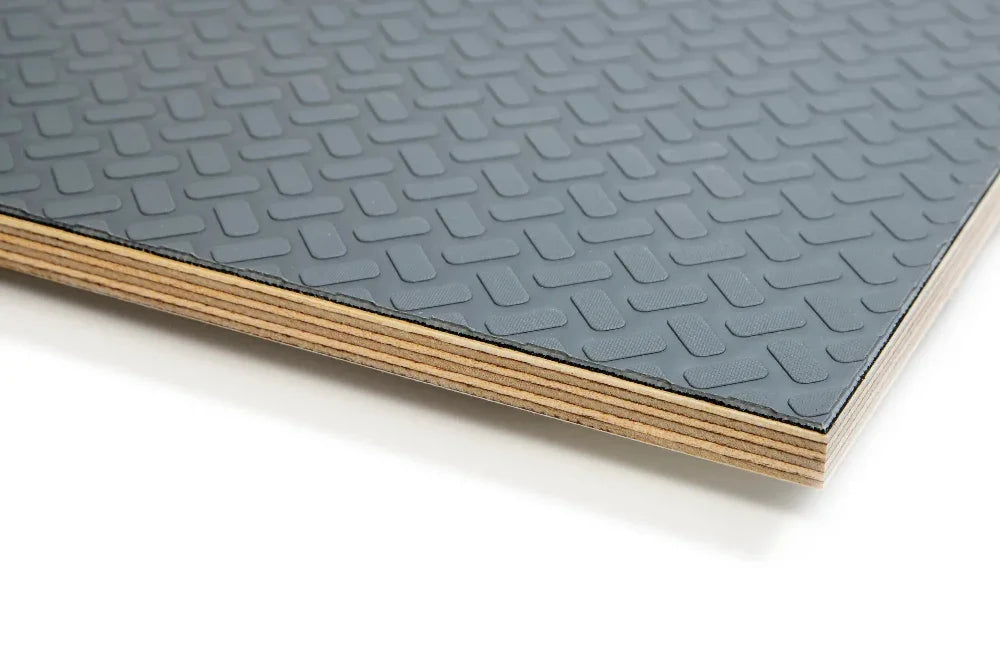

Wiremesh / Anti-Slip
A textured mesh pattern is pressed into one side.
It is highly used for trailer floors, scaffolding platforms, industrial flooring, and various transport applications. These panels prioritise grip over concrete finish quality.
Hexa Pattern
Hexagonal embossed texture designed for high-slip environments. According to our experience, Hexa pattern is the most popular option in the Australian market in 2025.
Hexa ply is common in vehicle flooring and van conversion kits, utility trailers, and heavy transport. 'Hive'-patterned Baltic Birch options are less popular among builders, but surprisingly rise in decorative applications.
Where Film-Faced Plywood Fails
This is the part most suppliers avoid discussing (but Ply Online is frank). Film-faced plywood is not permanent. It is a consumable engineered product.
The question is not if it will fail, but how quickly.
The most common failure is edge swelling. Even premium panels are vulnerable if edges are cut and left unsealed. Water enters through exposed veneers and swelling begins rapidly.
Once swelling starts, the film cracks, concrete adhesion increases, and delamination accelerates. It's a native behaviour.
Delamination is usually caused by poor glue bonding, insufficient pressing, trapped moisture, and repeated wet/dry cycling.
Panels often fail from the inside long before visible surface damage appears.
Film peeling is common with cheap overlays. Signs may include whitening, bubbling, lifting at edges, and surface cracking. Once the film separates, moisture intrusion accelerates dramatically.
Low-density cores compress under heavy concrete pressure and may collapse.
One of the most expensive site failures is concrete blowout. This happens when panel strength is overestimated, framing spacing is wrong, or damaged boards remain in circulation too long.
The plywood is often blamed unfairly, but many failures are actually engineering or handling problems.
The Biggest Myth: “Reuse Cycles”
Manufacturers frequently advertise from 20 to 50 uses. These numbers are often technically possible under controlled conditions, but not in real Australian site conditions.
Actual reuse depends on release agent use, edge sealing, cleaning methods, framing support, weather exposure, handling damage, concrete pressure, and even storage practices (which are absolutely unpredictable).
A premium birch-core panel may achieve 40+ pours in controlled infrastructure projects, but a poorly handled board may fail just after four. Reuse claims without context are pure marketing, not engineering.
| Variant | Typical Origin | Main Advantages | Main Disadvantages | Common Applications in 2026 |
|---|---|---|---|---|
| Birch-Core Phenolic Film Plywood | Finland, Latvia, Estonia, Eastern Europe | Exceptional flatness, high density, strong screw holding, excellent reuse cycles | Expensive, heavier, harder to source consistently | Infrastructure, high-end formwork, CNC manufacturing |
| Eucalyptus Hardwood Film-Faced Plywood | China, Vietnam | Better density than poplar-core panels, cost competitive, strong value category | Quality can vary significantly between factories and glue systems | Commercial construction, general formwork, medium-to-high cycle projects |
| Poplar-Core Economy Panels | China, Asia | Cheap, lightweight, easy to handle | Lower density, reduced durability, edge fragility, shorter reuse life | Low-cycle jobs, temporary works, budget-driven projects |
| Wiremesh Transport Panels | China, Europe, Southeast Asia | High abrasion resistance, anti-slip surface, durable under traffic loads | Less suitable for premium concrete finishes, heavier textured surface | Trailers, commercial vehicles, industrial flooring, transport platforms |
