Creating smooth curves from flat plywood has long challenged woodworkers. While steam bending and laminated construction have their place, one of the most practical and cost-effective methods remains kerf bending, also known as stripe cutting or kerf cutting.
The technique allows rigid plywood panels to be transformed into curved components using a series of precisely spaced cuts made through most of the panel thickness. Once bent into shape, the panel can be fixed permanently, creating reception counters, retail displays, curved cabinetry, furniture components, feature walls and architectural joinery that would otherwise require expensive moulds or specialist manufacturing processes.
Today, advances in CNC machining have made kerf bending more accurate than ever. Combined with the consistent veneer construction of quality plywood, manufacturers can achieve repeatable results with minimal waste and excellent surface quality.
This guide explains not only how kerf bending works, but also why it works, where it originated, its engineering limitations, and how Australian manufacturers can use the technique successfully in modern joinery.
What Is Kerf Bending?
Kerf bending is a woodworking technique in which a series of narrow, parallel cuts - known as kerfs - are machined into one face of a plywood panel. These cuts remove material from the inside of the bend while leaving a thin, continuous outer veneer intact.
As the panel is bent, each kerf closes slightly, allowing the plywood to deform without placing excessive tensile stress on the outer face veneer.
Unlike steam bending, it does not permanently alter the timber fibres. Instead, it creates controlled flexibility by reducing the panel's bending stiffness.
This makes kerf bending particularly attractive for creation of the curved reception desks, retail shopfitting, and exhibition displays.
For Australian cabinet makers, kerf bending offers a practical alternative to laminated bending when moderate structural performance and high production efficiency are required.
A Brief History of Kerf Bending
Although kerf bending is now closely associated with CNC manufacturing, the technique predates modern machinery by centuries.
Woodworkers have intentionally cut relief slots into timber since at least the Middle Ages. Barrel makers, shipbuilders and carriage makers used similar principles to reduce internal stresses when shaping heavy timber components around curved forms. These early relief cuts were made by hand using frame saws and later circular saws, allowing craftsmen to produce tighter curves without splitting the timber.
The commercial production of plywood during the early twentieth century dramatically expanded the possibilities of kerf bending. Unlike solid timber, plywood consists of alternating veneer layers with opposing grain directions. This cross-laminated construction provides excellent dimensional stability but also increases resistance to bending.
Manufacturers soon realised that machining a series of controlled kerfs through the inner plies dramatically reduced stiffness while preserving the appearance of the outer face. By the 1950s, kerf cutting had become common in cabinetmaking, retail fit-outs and furniture production.
The widespread adoption of CNC routers during the 1990s transformed kerf bending. Instead of relying on evenly spaced table saw cuts, manufacturers could machine variable kerf spacing, curved kerf patterns, parametric geometries, controlled kerf depths, and even complex three-dimensional bending zones.
Today, CNC technology allows designers to optimise flexibility while maintaining maximum material strength, enabling architectural forms that were previously impractical using traditional woodworking methods.
Understanding the Engineering Behind Kerf Bending
To understand kerf bending, it helps to examine what happens inside the plywood during bending.
When any panel is bent:
- The outside surface stretches (tension).
- The inside surface compresses (compression).
- Between them lies a neutral axis where little or no length change occurs.
A standard plywood sheet resists bending because every veneer layer contributes to the panel's stiffness.
Kerf cutting changes this behaviour. Each kerf removes material from the compression side, allowing the inner fibres to shorten without generating excessive stress. Rather than forcing the entire panel to compress, each individual kerf gradually closes as the bend increases. The remaining face veneer effectively acts as a flexible hinge connecting the segmented plywood ribs. This explains why stripe cutting can produce remarkably tight curves while maintaining a continuous external surface suitable for laminates, veneers or decorative finishes.
Why European Birch Plywood Performs Better
Not every plywood panel bends equally well. The quality of the finished curve depends heavily on veneer consistency, glue quality and core construction. This is where European Birch plywood offers significant advantages over many construction-grade alternatives.
European Birch plywood typically contains a higher number of thinner veneers than many softwood construction panels. Because each veneer contributes only a small proportion of the overall thickness, stresses are distributed more evenly during bending. This reduces the likelihood of core cracking, delamination, uneven bending, or surface rippling.
High-quality European manufacturing standards produce consistently bonded veneer layers with minimal internal voids. Void-free cores are particularly important because hidden gaps can become stress concentration points during bending.
Birch machines exceptionally cleanly.
The dense hardwood veneers produce crisp kerfs with minimal tear-out, particularly when machined using carbide tooling on CNC routers.
This results in improved finishing quality with more predictable bend behaviour, cleaner internal cuts, and better adhesive penetration when kerfs are filled. With CNC machining now commonplace in Australian manufacturing, kerf bending is no longer limited to simple cylindrical curves. Designers can produce flowing, organic forms that were previously practical only through complex laminated construction.
Can You Really Bend Plywood to 90 Degrees?
One of the most common questions asked by cabinet makers is whether plywood can be bent through a full 90° angle using kerf cuts.
The answer is yes, but only under the right conditions.
Contrary to many online tutorials, there is no universal kerf pattern that guarantees a successful 90° bend.
The result depends on several interacting factors - the timber species itself, initial panel thickness, number of veneer layers, kerf width and spacing, and moisture content. Also, adhesive system is important, if the kerfs are to be filled.
In practice, experienced manufacturers achieve reliable 90° bends by producing a dense series of closely spaced kerfs that leave only a thin outer veneer intact. The closer the kerfs are spaced, the more evenly the plywood deforms, reducing the risk of visible flat spots or localised cracking.
Equally important is restraint during assembly. Once the desired angle has been reached, the component is typically fixed to a substrate, laminated over a former, or the kerfs are filled with adhesive to restore stiffness. Without reinforcement, the kerfed section has significantly lower structural capacity than an uncut panel.
For this reason, kerf bending should be viewed as a forming technique, not as a substitute for structural curved plywood.
Workshop Techniques, Design Parameters and Common Mistakes
Planning the Bend
Successful kerfing begins long before the first cut is made. The desired curve determines almost every machining parameter, including kerf depth, spacing, cutter width and the orientation of the plywood grain.
As a general rule:
- Tighter bends require more closely spaced kerfs and/or deeper cuts.
- Larger bend radii can be achieved with fewer, wider-spaced kerfs.
- The outer face veneer must remain continuous to maintain the finished surface.
One of the most common mistakes is designing the kerf pattern around the plywood thickness alone. In reality, the inside bend radius is the critical design parameter.
Grain Direction Matters
Unlike solid timber, plywood has alternating veneer layers, but the face veneer still influences bending behaviour.
For most applications these simple hints are right:
- Bend across the face grain whenever possible.
- Avoid forcing the panel to bend parallel to the face grain unless the radius is relatively large.
- If the finished face will be veneered or laminated, consider which side will remain visible before machining.
Experienced manufacturers often machine test samples first because even plywood from the same supplier can vary slightly between production batches.
Kerf Cutting Methods
There are two primary methods used in Australian workshops.
Table Saw Kerfing

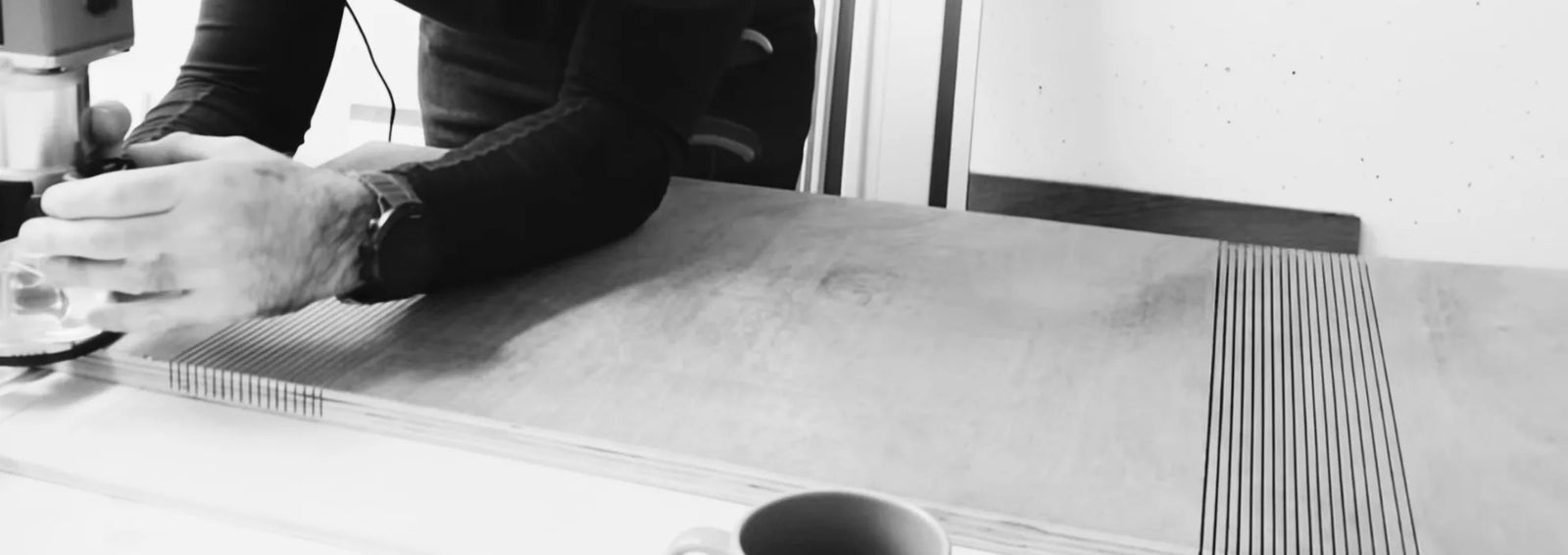

The traditional method uses repeated passes over a table saw with a standard blade. Advantages include low equipment cost, suitable for one-off projects, and reasonably fast setup.
However, the process has its limitations such as constant kerf spacing only, difficulty to produce complex curves, and as a result greater operator involvement.
Table saw kerfing remains popular for simple cabinet work and reception counters.
CNC Router Kerfing
Modern cabinet manufacturers increasingly rely on CNC routers.
Benefits include extremely accurate kerf spacing, variable kerf depth, complex curved geometries with a high repeatability, and reduced production time.
CNC machining also allows designers to vary kerf spacing along the bend, concentrating flexibility only where required.
This produces stronger finished components because unnecessary material removal is avoided.
Recommended Workshop Starting Parameters
Achieving a Smooth 90° Bend
Many failed kerf-bending projects occur because too few kerfs are used. The bend should not occur at one point. Instead, it should be distributed evenly across the entire bending zone.
A smooth 90° bend generally requires numerous evenly spaced kerfs, consistent kerf depth, uniform cutter width, and rigid former or jig.
If the plywood appears faceted rather than smoothly curved, the kerfs are usually too far apart.
If the outer veneer begins whitening or cracking, the remaining material is either too thick for the desired radius or the bend is being forced too quickly.
Common Workshop Mistakes
Cutting Too Deep
Many beginners assume deeper kerfs always produce easier bending.
In reality, excessively deep cuts dramatically weaken the panel.
If too little material remains, the face veneer can split during bending or fail later in service.
Leaving Too Much Material
The opposite problem is equally common.
If excessive material remains beneath the face veneer, the plywood becomes extremely difficult to bend.
The resulting force often causes surface cracking, delamination, and glue-line failure.
Uneven Kerf Spacing
Inconsistent spacing creates inconsistent stiffness.
The finished component may develop flat sections, tight local bends, twisting, surface distortion.
CNC machining largely eliminates this issue.
Ignoring Internal Voids
Lower-quality plywood frequently contains hidden core voids.
During bending these voids become weak points where the panel may collapse unexpectedly.
This is one reason professional manufacturers generally prefer high-quality European Birch plywood with a more consistent core construction.
Restoring Strength After Bending
Kerf bending creates flexibility by removing material. Once the required shape has been achieved, stiffness usually needs to be restored.
Common methods include:
Adhesive Filling
Epoxy or polyurethane adhesive is introduced into the kerfs after bending.
Once cured, the adhesive locks the panel into its new geometry while improving rigidity.
Laminating Additional Skins
One or more plywood or MDF skins may be bonded over the kerfed face.
This technique is widely used for curved reception counters and feature walls. The added skin distributes loads across the entire curve while concealing the kerfs.
Mechanical Support
In cabinetry, the curved panel is often fixed directly to internal framing or ribs.
The framework carries structural loads while the kerfed plywood provides the finished surface.
Kerf Bending Compared with Other Plywood Bending Techniques
| Method | Advantages | Limitations | Best Applications |
|---|---|---|---|
| Kerf Bending | Fast, economical, suitable for CNC machining | Reduced structural strength until reinforced | Reception desks, cabinetry, displays |
| Flexible Plywood | Very tight curves without machining | Higher material cost, lower stiffness | Decorative joinery, exhibition work |
| Cold Laminating | Excellent structural performance | Labour intensive, requires forms | Furniture, architectural joinery |
| Steam Bending | Strong continuous timber fibres | Limited to solid timber, specialist equipment | Traditional furniture, heritage restoration |
For many commercial joinery projects, kerf bending provides the best balance between manufacturing efficiency, material cost and design flexibility.
Ultimately, successful kerf bending depends on the combination of thoughtful design, accurate machining and high-quality plywood. No kerf pattern can compensate for poor core construction or inconsistent veneer quality, making material selection just as important as machining technique.
Frequently Asked Questions About Kerf Bending Plywood
What is the minimum bend radius?
There is no universal minimum bend radius for kerf-bent plywood.
Rather than relying on published figures, professional manufacturers develop a kerf pattern through prototype testing on offcuts from the same production batch.
This approach is considerably more reliable than attempting to apply generic radius charts found online.
Should the kerfs face the inside or outside of the curve?
In almost every application, the kerfs are machined on the inside (compression side) of the bend.
This allows the kerfs to close as the panel curves while leaving the visible outer face uninterrupted.
Once installed, the kerfed face is often concealed by framing, laminates, additional skins or the surrounding joinery.
Can kerf cuts remain visible?
Yes.
Some contemporary designers intentionally expose kerf patterns as a decorative feature.
CNC machining makes it possible to create highly intricate geometric kerf layouts that become part of the final aesthetic.
However, in commercial cabinetry and shopfitting, the kerfed face is usually hidden.
Can kerf-bent plywood support structural loads?
Generally, no.
Kerf cutting significantly reduces bending stiffness because material has been removed from the panel.
Although stiffness can be restored by filling kerfs with adhesive, laminating additional skins,or fixing the panel to structural framing,
Kerf bending should primarily be regarded as a forming technique rather than a structural engineering solution.
Where significant structural performance is required, cold-laminated construction is generally the preferred approach.
Is CNC machining always better than a table saw?
Not necessarily.
For one-off projects or simple cylindrical bends, a table saw remains an effective and economical solution.
However, CNC machining offers clear advantages when projects require multiple identical components, complex geometries, reduced labour, or integration with CAD/CAM workflows.
For professional manufacturers producing commercial joinery, CNC machining has become the preferred method because of its accuracy and production efficiency.
Best Practice Recommendations
Professional manufacturers typically follow several simple principles to maximise success.
Always prototype first
Even high-quality plywood varies slightly between production batches.
Trial cuts made on offcuts allow the kerf pattern to be refined before valuable components are machined.
Use quality plywood
The consistency of the finished bend depends as much on the plywood as the machining itself.
Panels with uniform veneer construction and minimal internal voids produce more predictable results.
Machine accurately
Small variations in kerf depth accumulate across the bending zone.
Precision machining significantly improves curve consistency, surface quality, assembly speed, and overall appearance.
Reinforce after bending
Unless the component is purely decorative, reinforcement should be considered part of the manufacturing process.
Whether achieved through adhesive filling, laminated skins or concealed framing, restoring stiffness is essential for long-term performance.
References
The following publications provide authoritative guidance on wood behaviour, plywood properties and bending mechanics:
The Engineered Wood Products Association of Australasia (EWPAA)
Forest and Wood Products Australia (FWPA)
USDA Forest Products Laboratory. Wood Handbook – Wood as an Engineering Material. Madison, WI: U.S. Department of Agriculture, Forest Service.
USDA Forest Products Laboratory. Bent Wood Members and Laminated Construction.
Bodig, J., & Jayne, B. A. Mechanics of Wood and Wood Composites. Krieger Publishing.
Tsoumis, G. Science and Technology of Wood: Structure, Properties and Utilization. Springer.
